ACTAtek IP Door Access Control

Product Overview

Details
Product Videos
Features
Specs
Downloads
Product Options

Why ACTAtek?

The new, third generation Actatek provides access control throughout a facility, ensuring employees and visitors alike only have access to approved areas. The ability to mix a variety of authentication technologies, including PIN, Proximity/Smart Card and Biometric, the ACTAtek system can be tailored to fit the security needs of any environment. To learn more about what access control is, please click here.

What are the different ACTAtek options available?

The following list is comprised to help with your ACTAtek3 decision. Please also feel free to call us today to speak about which option would be best for you at 866-400-9292. Some options are special order.

ACTA3-1K-P-S-M : Mifare Smart Card/Fob and Pin Code Only
ACTA3-1K-P-S-M-C : Mifare Smart Card/Fob and Pin Code Only with Camera Option
ACTA3-1K-FLI : Fingerprint and Pin Code Only
ACTA3-1K-FLI-C : Fingerprint and Pin Code Only with Camera Option
ACTA3-1K-FLI-S-M : Fingerprint, Mifare Smart Card/Fob, and Pin Code Only
ACTA3-1K-FLI-S-M-C : Fingerprint, Mifare Smart Card/Fob, and Pin Code Only with Camera Option
ACTA3-1K-P-S-Hp : HID Prox, Prox II Smart Card/Fob and Pin Code Only
ACTA3-1K-P-S-Hp-C : HID Prox, Prox II Smart Card/Fob and Pin Code Only with Camera Option
ACTA3-1K-FLI-S-Hp : Fingerprint, HID Prox, Prox II Smart Card/Fob and Pin Code Only
ACTA3-1K-FLI-S-Hp-C : Fingerprint, HID Prox, Prox II Smart Card/Fob and Pin Code Only with Camera Option
ACTA3-1K-P-SHi : HID iClass Smart Card/Fob and Pin Code Only
ACTA3-1K-P-SHi-C : HID iClass Smart Card/Fob and Pin Code Only with Camera Option

Where can I find more information about ACTAtek?

Frequently Asked Questions about door access control, model and accessories options, pricing, software information and more can be found at www.ACTAtekUSA.com .

actatek gate access-control

%%Panel.ProductVideos%%

Instant Notifications via SMS or E-mail upon User Authentication
Optional Built-In Video and Still Camera to use with DVR System
Up to 1,000 Users on Base Model
Mifare or HID Card Access Options
Fingerprint, PIN, Card, plus Mix and Match Access Methods

Access Control, Video Surveillance, Time Attendance, PayRoll, and Work Force Management Hardware Platform for Software Developer and System Integrators

Easy to integrate using the ACTAtek SOAP-based middleware such as the Access Manager, Agent
Web-based any time - anywhere access, control and administration secured by fingerprint, PIN, RFID smart card, authentication with photo taken as an option
Multilingual web pages and message display on full-colored LCD screen
Instant notification via SMS or email upon user authentication
Support a wide range of RFID smart card from Mifare, HID iClass and Proximity, Sony Felica, EM, Legic, Cepas, barcode
Optional built-in video and still camera, allowing video surveillance and direct BNC output to DVR and analog monitor

Model:	Fingerprint Only	Smart card Only	Fingerprint + Smart card
Fingerprint Enrollment	Yes	No	Yes
Built-in smart card reader	No	Yes	Yes
Built-in web & database server	Yes	Yes	Yes
Number of users	1k/3k/5k 10k/15k/20k
Size	6.9 x 3.3 x 1.5 inches
Weight	15.8 ounces
Max. Transaction records stored	75000 log for 1k,. 3k, 5k user model 10000 log for 10k, 15k, 20k user model
Static IP address assignment	Yes	Yes	Yes
Dynamic IP address assignment	Yes	Yes	Yes
Power Over Ethernet (Built-In)	Available on certain models only
Resolution of LCD	2.8' 64K/256K color TFT screen 320 x 240 pixel resolution
Non-volatile memory	256MB
Computer OS support	Mac OS Windows 95/98/NT/2000/XP/Vista/Win7 Windows Mobile, Android, iPhone OS, Linux PC
Valid Characters for employee ID	0-9, A-C (max. 16 characters)
Programmable function key support	F1, F2, F3, F4
Authentication time	< 1 Second
Auto-match users	1:500 (1:N) FAM mode l (compatible with ACTA2) 1:3000 (1:N) FLI model
Multi-lingual Support	Yes	Yes	Yes
Encryption	Secure Socket Layer (SSL)
Expert Report	CSV / Text file
I/O interface	RS-232/RS-485 Wiegand 26bit output (Optional: External I/O board)
Network interface	100BaseT Ethernet (built-in) / SNMP support GSM /G P RS, Wi-Fi (*additional device is required)
Operating temperature	-20°C to 50°C
Modes of authentication	Fingerprint, Smart card, PIN Smart card + PIN Smart card + Fingerprint ID + Fingerprint

The ACTAtek has a camera that can take a snapshot of access and use.

Internal CMOS Camera

The CMOS camera is a module that is factory installed into the ACTAtek. With this module, that ACTAtek takes a snapshot anytime someone attempts to enter the area/facility. The subsequent photo is then stored with the event record inside the ACTAtek and viewed via a web browser.

MSRP: $200

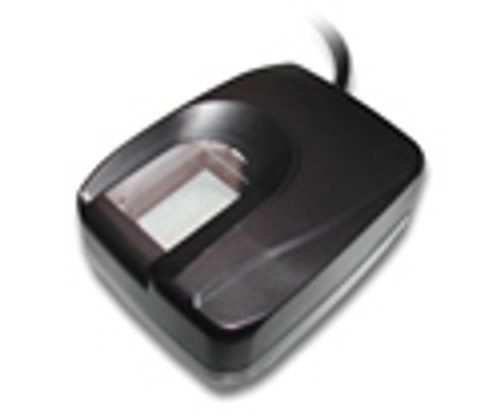

LogiPrint Remote Registration Device (USB)

The ACTAtek LogiPrint Remote Registration allows users to be registered at a computer workstation rather than at an ACTAtek unit.This device is particularly useful when dealing with many users and/or multiple access points.

MSRP: $299

External I/O Board

Used with the ACTA3, the Secure IO is an accessory device which is primarily used to prevent forced entry. By locating the relay that unlocks the door inside the secured area, the Secure IO can prevent “hot wiring” of the lock. Additional IO functionality includes four assignable inputs for use with alarm disconnects, alarm/tamper triggers, Request-to-Exits and more! We strongly recommend this option for all high security areas.

MSRP: $179

ACTAguard

The ACTAguard is a weather resistant, heavy duty stainless steel enclosure with a lexan window used to protect the ACTAtek from vandalism and harsh environments.

MSRP: $289

Complete Door Hardware

One-Stop-Shop for complete door hardware solutions. Options ranging from Strikes to Mags depending on the solution for your door access. Used in conjunction with Access Control products.
