HES 1006 Series

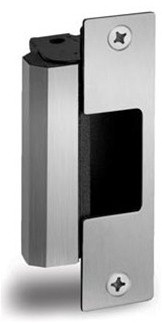

HES 1006 electronic strike with great strength

The HES 1006 series electronic strike is the most versatile strike on the market. It has a dual interlocking plunger and a heavy duty steel housing.

Frame application

• Metal
• Wood

Electrical

• .45 Amps @ 12VDC continuous duty
• .25 Amps @ 24VDC continuous duty

Standard Features

• Stainless steel construction
• Tamper resistant
• Static strength 3070 lbs. (fail secure)
• Dynamic strength 350 ft-lbs. (fail secure)
• Endurance 1,000,000 cycles
• Fail secure (standard)
• Dual voltage 12 or 24VDC continuous duty
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1" deadbolt
• Plug-in connector
• Full keeper shims for horizontal adjustment
• Trim enhancer
• Five year limited warranty

Faceplate Options

• A  (4-7/8" x 1-1/4") For use with Mortise locksets with a normally extended 1" deadbolt without a deadlatch.
• K/KD  (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned above the latchbolt.
• Z  (4-7/8" x 1-1/4") For use with unit and mono locks.

• UL 10C fire-rated, 3 hour single door (fail secure only)
• UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
• CAN4-S104(ULC-S104) fire door conformant
• ANSI A250.13-2003 windstorm listed
• UL 1034, burglary-resistant listed
• ANSI/BHMA A156.31, Grade 1
• NFPA-252 fire door conformant
• ASTM-E152 fire door conformant
• MEA New York City accepted
• Florida Building Code approved
• Patents #6021038 & 6595564
