Call for Pricing and Lead Time 866.400.9292

5.00 LBS
Access Methods:
Fingerprint, PIN, Card
Card Access:
13.56 MHz Mifare
User Capacity:
IP Enabled:
Log Capacity:
1GB Flash + 32MB Ram
Network Interface:
Wiegand Output:
In & Out
Internal Relay:
Sound and Interface:
Multi-color LED and audible alerts
Operating Voltage:
12V DC
135 x 128 x 50
Operating Temperature:
-4F to 122F
Built-In POE::
Weather Proof:
IP 65:

Product Overview


  • Vibrant Color Touch Screen Interface
  • Video-Phone Interface
  • Built-In Web Server
  • Fingerprint, PIN, Fingerprint + PIN, Fingerprint + Facial Recognition, Card + Fingerprint, Card + PIN access methods
  • Up to 200,000 Users

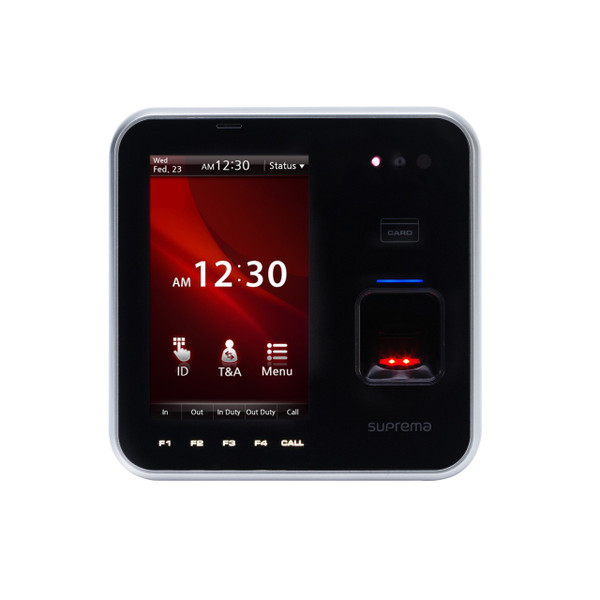

The BioStationT2 is a state-of-the-art access control system unmatched in its power and versatility. This device comes with built in features that push the boundaries of what can be achieved by biometric technology. It utilizes an award winning best in breed fingerprint scanner system.  It has a 400,000 fingerprint user capacity. Each user can have a personal pass code. It comes complete with a mifare smart card reader.  It allows for a wide range of access modes, including options as dual authentication with Pin + Finger & Card + Finger, just to name a few. It sports a vibrant 5” color screen that can display messages, custom wallpaper, show video/photos and even give voice instructions.  With its built in camera, microphone and speakers it can be used as a video door phone.  The built in camera allows it to automatically take a snapshot of anyone in front of the unit for verification.  User time & attendance records are automatically recorded. This amazing machine can hold an incredible 1 million event logs and 5,000 captured user images right on board.
      What separates the BioStationT2 from most network capable access system is the embedded web server. The web server runs the system management software BioStar lite within its matrix, thus no need to connect with a control computer or server.  Using the embedded server allows for 24/7 real time system access management.  This ultra-advanced biometric system can be networked with other BioStationT2 units as well as a wide array of other security products.  Another unique feature of the BioStationT2 is it boasts multiple ways of connecting the unit to other devices on a network. It can be set up to incorporate networking options like wifi, weigand, Cat5, PoE & it even has a USB port which allows for data to be downloaded onto thumb drives when needed.  The BioStationT2 brings the power, technology and modern design never before seen in the biometric security market.  Biometric security and sophistication once only seen as a fantasy can now be at your command today! To learn more about what access control is, please click here.


 2.5" 16M Color LCD

  • Display messages, video, animation and photos to convey various information and notices

Wi-Fi Wireless LAN

  • Easy network integration and data transfer from PC using wireless network without cabling

Industry leading fingerprint identification speed and capacity

  • Identify 3,000 fingerprints in 1 second and store maximum 400,000 templates and 1,000,000 events in internal memory

Multiple RFID cards : Mifare, Proximity (EM, HID)

  • Offer a wide selection in authentication mode and easy security system upgrade from EM, HID Prox or Smart card reader

USB memory slot

  • Easy data transfer to PC or other BioStations using a USB memory device

High quality sound

  • 16 bit Hi-Fi sound for background music, sound effect and voice instruction

CPU Dual CPU (32bit RISC + 400MHz DSP)
Memory 1GB flash + 34MB RAM
Display 2.5" QVGA 16M Color LCD
Fingerprint Identification Speed        3,000 match in 1 second (max 20,000 templates)
Fingerprint Capacity 400,000 templates (200,000 users)
Log capacity 1,000,000 events
RF Support Mifare (13.56MHz), Proximity (125 KHz EM, HID Prox)
Network interface Wireless LAN (optional), TCP/IP, RS485
PC interface USB, RS232
USB memory slot USB Host
Output relay Deadbolt, EM lock, door strike, automatic door

Wiegand I/O, 4 TTL I/O

Size 155 x 155 x 50mm (W x H x D)
Operation modes Fingerprint, PIN, PIN + Fingerprint Card, Card + Fingerprint, Card + PIN (RF model)
  4 Function keys for user-defined functions
  Wiegand I/O, 4 TTL I/O
  Microphone and speaker for door phone
  Navigation key for menu movement


The BioMini Remote Registration allows users to be registered at any Windows based PC.  This device is useful with multiple access points or site locations.

MSRP: $249


BioStar Software

The BioStar Software enables the ability to have user management, door management, reporting and has complete time and attendance features.

MSRP: Lite Version included with purchase


Secure I/O

Used with Suprema Products, the Secure IO is an accessory device which is primarily used to prevent forced entry.  By locating the relay that unlocks the door inside the secured area, the Secure IO can prevent “hot wiring” of the lock.  Additional IO functionality includes four assignable inputs for use with alarm disconnects, alarm/tamper triggers, Request-to-Exits and more!  We strongly recommend this option for all high security areas.

MSRP: $149


Complete Door Hardware

One-Stop-Shop for complete door hardware solutions. Options ranging from Strikes to Mags depending on the solution for your door access.  Used in conjunction with Access Control products.

MSRP: ranges on solution
