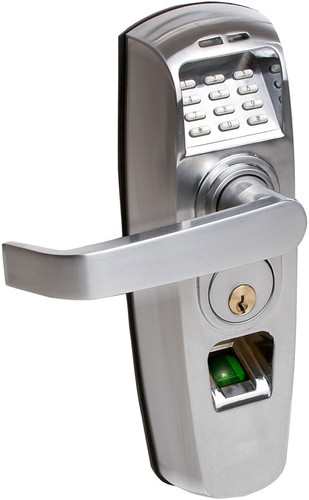

Westinghouse RTS USB Locks

$675.00
Product Type *
MS1 Professional Suite (see below)
Current stock: 0
Description



The RTS is the first American made biometric door lock that can be controlled from a PC using the innovative MS1 management kit or function flawlessly as a stand-alone unit. When the lock is used in conjunction with the MS1 management kit organizing user assess rights and time & attendance reports are easily done on an office or home PC. It even comes with a USB fingerprint mouse scanner that can function as a “remote registration device”. Multiple users can be enrolled at one location and then uploaded onto several locks seamlessly with the include USB data base transfer thumb-drive.

This revolutionary new biometric lock provides high user capacity (1,000), individual user access rights, automatic audit trail tracking and timed door lock & unlock scheduling. Access can be granted using its biometric optical scanner, pin-code or a combination of both to require “dual-form” authentication. The installation of the RTS is simple and easy. It was engineered to be a “DIY” product that will fit on any US standard home style door cut out.

The American made RTS was designed to function in any environments. It’s constructed with an extremely durable high-grade metal lock body. It boasts an industry leading IP56 rating, meaning it is adaptive to all weather conditions. For convenience and to comply with many building requirements the lock has a removable/ replaceable keyway. This will allow several RTS units to all be keyed the same if so desired. These unique features make the RTS a perfect access control solution for any business, factory or government facility that places a high level of importance on security and employee accountability.





Features

  • Designed and made in the USA!
  • 1,000 Fingerprint &/or PIN enrollment capacity.
  • Access granted by Fingerprint, PIN &/or PIN then Fingerprint plus emergency keys.
  • Scheduled daily Unlock & Relock times.
  • Auto locks after each entrance unless scheduled to be unlocked.
  • Can work stand-alone with no cables or Wi-Fi needed.
  • Designed to mount on any US standard home door cut out.
  • IP56 rated ensures resistance to humidity, dust, and rain.
  • ADA compliant reversible handle for right or left hand installation.
  • A 3-hour UL fire-rated locking latch.
  • ANSI Grade 2 “field selectable” latch. (Can be set to 2-3/4” or 2-3/8”)
  • Removable/replaceable keyway allowing multiple locks to be keyed alike.
  • Powered by 4 AA batteries.
  • Can be connected to a building power network if needed.
  • Low battery power warning.
  • FCC, CE, UL, ANSI, IP, ROHS Certifications.



Specifications

Door Thickness 1-1/2” to 2”
Dimensions 9-1/2” H x 3” W x 1-1/2” D (not including handle)
Unlocking Methods Fingerprint, PIN or User ID then Fingerprint. Plus emergency keys.
User Capacity 1000 Users
Backset Adjustable (2-3/8 in or 2-3/4 in)
False Accept Rate (RTS-Z Only) .001%
False Reject Rate (RTS-Z Only) .01%
Environment -40 deg. F to 150 deg. F
Certifications FCC, CE, UL, ANSI, ROHS
Compliances ISO/TS 16949, ISO 9001, ISO 14001

Downloads

  • Coming Soon!

Includes

  • Coming Soon



MS1 Professional Suite

This is the MS1 Professional Suite for use with the RTS series locks. This software makes managing anywhere from 1 to 1000 users a snap and can control any number of locks. The system will allow you to:

1. Manage users for one or more locks, including adding fingerprints, PIN codes and all individual user permissions, allowed entry times and more.

2. Query and analyze audit trails from any lock in your network.

3. Quickly copy locks to new locks saving you time and money.

4. Backup and Restore all of your lock databases.

5. Edit global lock settings for each lock including global access times and much more.

6. Allows each lock to have a different set of 1,000 users and allows you to cut and paste individual users or even groups of users to any lock in seconds.

The new MS1 software is compatible with any of the RTS series.



Install the appropriate driver (32bit or 64bit) using the links below (on the bottom of your fingerprint scanner near the barcode you will see inside the number shown 2300):

If you see 2300 in the number sequence download the following driver:

Download USB Scanner Drivers x64 (for the D2300 scanner only)

Download USB Scanner Drivers x32(for the D2300 scanner only)



Reviews

Reviews (0)

Be the first to review this product.
Additional Info

Additional Info

SKU:
RTS
Weight:
12.00 LBS
Shipping:
$0.00 (Fixed Shipping Cost)
