HES 9600 Series

$439.00
Latch Bolt Monitor Option *
SMARTPACIII
Plug-In Buzzer
Current stock: 0
Description

HES 9600 series with wind resistance

The 9600 is the only surface mounted electric strike designed with the strength and durability required to exceed the severe forces of ANSI Windstorm testing.







%%Panel.ProductVideos%%

Frame application

  • Metal
  • Wood

Electrical

  • .45 Amps @ 12VDC continuous duty
  • .25 Amps @ 24VDC continuous duty

Standard Features

  • Completely surface mounted
  • Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Dual voltage 12 or 24 VDC
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 3/4" pullman latch

Optional Features

  • LBM - Latchbolt monitor
  • LBSM - Latchbolt strike monitor
  • UL listed to ANSI 250.13-2003 Severe Windstorm listed
  • Florida Building Code Approved
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • ANSI/BHMA, A156.31 Grade 1





  • Hes 9600 Electric Strike
  • 12VDC 2000mA Regulated Power Supply
  • Optional Latch Bolt Monitor






2006M: Plug In Buzzer

Need to know when someone entered the door? Add a plug in buzzer to create sound when the door is used.

MSRP: $31.50

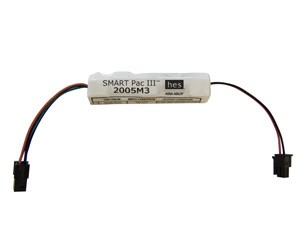

2005M3: Smart Pac III

HES SmartPac III in-line power conditioner.  For use in continuous-duty, fail-secure applications.

MSRP: $61.50






hes9500.jpgLBM: Latchbolt Monitor

Choose an LBM style strike instead of standard version with a 630 finish and Latchbolt Monitor (LBM).


 MSRP: +$45




Reviews

Reviews (0)

Be the first to review this product.
Additional Info

Additional Info

SKU:
HES:9600-KIT
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
