HES 1006 Series

$469.00
Faceplate Option *
Latch Bolt Monitor Option
SMARTPACIII
Plug-In Buzzer
Current stock: 0
Description

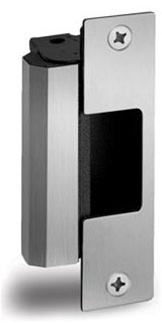

HES 1006 electronic strike with great strength

The HES 1006 series electronic strike is the most versatile strike on the market. It has a dual interlocking plunger and a heavy duty steel housing.





%%Panel.ProductVideos%%

Frame application

  • Metal
  • Wood

Electrical

  • .45 Amps @ 12VDC continuous duty
  • .25 Amps @ 24VDC continuous duty

Standard Features

  • Stainless steel construction
  • Tamper resistant
  • Static strength 3070 lbs. (fail secure)
  • Dynamic strength 350 ft-lbs. (fail secure)
  • Endurance 1,000,000 cycles
  • Fail secure (standard)
  • Dual voltage 12 or 24VDC continuous duty
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 1" deadbolt
  • Plug-in connector
  • Full keeper shims for horizontal adjustment
  • Trim enhancer
  • Five year limited warranty

Faceplate Options

  • A  (4-7/8" x 1-1/4") For use with Mortise locksets with a normally extended 1" deadbolt without a deadlatch.
  • K/KD  (4-7/8" x 1-1/4") For use with Mortise locksets with a deadlatch positioned above the latchbolt.
  • Z  (4-7/8" x 1-1/4") For use with unit and mono locks.





  • UL 10C fire-rated, 3 hour single door (fail secure only)
  • UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
  • CAN4-S104(ULC-S104) fire door conformant
  • ANSI A250.13-2003 windstorm listed
  • UL 1034, burglary-resistant listed
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • MEA New York City accepted
  • Florida Building Code approved
  • Patents #6021038 & 6595564





  • Hes 1006 Strike
  • FacePlate Option
  • 12VDC 2000mA Regulated Power Supply






2006M: Plug In Buzzer

Need to know when someone entered the door? Add a plug in buzzer to create sound when the door is used.

MSRP: $31.50



2005M3: Smart Pac III

HES SmartPac III in-line power conditioner.  For use in continuous-duty, fail-secure applications.

MSRP: $61.50






hes1006.jpgLBM: Latchbolt Monitor

Choose an LBM style strike instead of standard version with a 630 finish and Latchbolt Monitor (LBM).


 MSRP: +$45




Reviews

Reviews (0)

Be the first to review this product.
Additional Info

Additional Info

Weight:
3.00 LBS
Shipping:
Calculated at Checkout
