AL600ULACM8

$532.35
Current stock: 0
Description

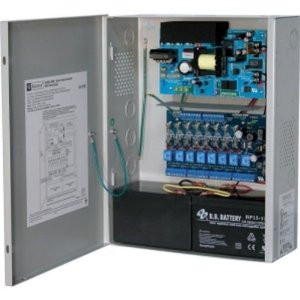

Model AL600ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL600ULACMCB is a PTC protected version of this unit.

%%Panel.ProductVideos%%
  • 12VDC or 24VDC selectable output.
  • 6 amp of continuous supply current.
  • 115VAC 60Hz, 1.9 amp input.
  • Filtered and electronically regulated outputs.
  • Short circuit and thermal overload protection.
  • Maximum charge current .7 amp.
  • Zero voltage drop upon transfer to battery backup.
  • AC input and DC output LED indicators.
  • AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
  • Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).

Access Power Controller:

  • Eight (8) Access Control System outputs.
  • Eight (8) fuse protected Fail-Safe and/or Fail-Secure 12VDC or 24VDC power outputs.
  • Eight (8) fuse protected 12VDC or 24VDC auxiliary power outputs (unswitched).
  • Red LEDs indicate outputs are triggered (relays energized).
  • Eight (8) Access Control System trigger inputs.
  • Eight (8) normally open (NO) inputs.
  • Eight (8) open collector inputs.
  • Any combination of the above.

Fire Alarm Disconnect:

  • Fire Alarm Disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
  • Normally open (NO) or normally closed (NC) dry contact input.
  • Polarity reversal input FACP signaling circuit.
  • Fire Alarm trigger LED indicates that the Fire Alarm Disconnect has been activated.
  • Fire Alarm output relay for triggering auxiliary reporting devices (form "C" contact rated @ 1 amp 28VDC).
  • Altronix 12VDC 6A Power Panel with 8 Fused Outputs
  • Fire Alarm Disconnect
  • Battery Charger and Gray Enclosure
  • (1) 12VDC / 12aH Batteries
  • Power Cable
Reviews

Reviews (0)

Be the first to review this product.
Additional Info

Additional Info

Weight:
20.00 LBS
Shipping:
Calculated at Checkout
