BioEntry Plus

  • IP Enabled
  • Up to 5,000 Users
  • Mifare, EM, or HID Card Access Options
  • Fingerprint, Card, Fingerprint + Card Access Methods
  • Slick and Slim Design for Narrow Spaces

The BioEntry Plus is the perfect access control solution for corporate offices, storage areas & server rooms. Its unique slim, discreet design allows it to seamlessly blend into the aesthetics of a corporate environment while providing superior biometric security. The BioEntry Plus features optional dual forms of identification. It utilizes an award winning fingerprint scanner system plus MiFare proximity card technology. This biometric system can easily be networked with additional BioEntry Plus units as well as a wide range of other Suprema devices thus allowing for nearly limitless security integration. To learn more about what access control is, please click here.


Fast and accurate fingerprint identification

  • Award winning fingerprint algorithm (No.1 in FVC2004 & FVC2006)
  • 1:2000 fingerprint identification in 1 second

Easy installation and connectivity

  • Ethernet interface for TCP/IP communication
  • Wiegand output configurable up to 64 bits
  • Internal relay for direct lock interface

Easy operation and management

  • Built-in smartcard reader for different user authentication modes (fingerprint and/or card)
  • Easy-to-use Windows Based Software (BioStar) for access control and time attendance
  • Optional standalone user management using administrative cards
  • Fingerprint template can be stored on card
  • Slim design for installation on a door frame
  • Red and green LED indicator with audible alerts for intuitive user interface

Full access control features

  • 128 customizable access groups and 128 time schedules
  • Anti-passback door zones supporting 32 readers
  • Tamper switch and duress finger option
CPU 400MHz DSP
Memory 4MB flash + 8MB RAM
Fingerprint Scanner 500 dpi optical scanner
Identification Speed 2,000 match in 1 second
Fingerprint Capacity              10,000 templates (5,000 users)
Log Capacity 50,000 events
RF Support Proximity (125kHz EM), Mifare (13.56MHz)
Operation Modes Fingerprint, RF card, RF card + fingerprint
Network Interface TCP/IP, RS485
Wiegand Output Configurable up to 64 bits
TTL I/O 2 inputs for exit switch and door sensor
Internal Relay Deadbolt, EM lock, door strike, automatic door
Sound and Interface     Multi-color LED and audible alerts
Operating Voltage 12VDC
Size 50 x 160 x 37 mm (W x H x D)
Operating Temperature - 20℃~ 50℃ (-5℉ ~ 122℉)


The BioMini Remote Registration allows users to be registered at any Windows based PC.  This device is useful with multiple access points or site locations.

MSRP: $249

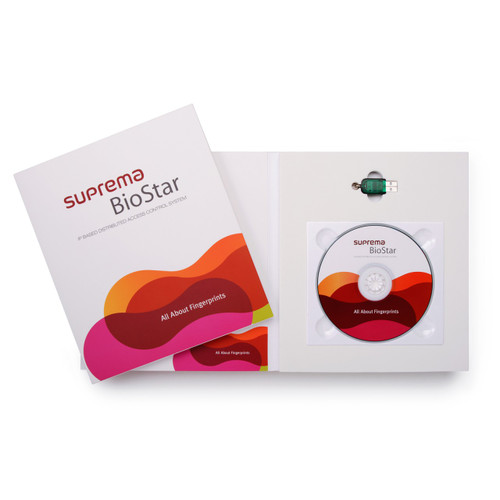

BioStar Software

The BioStar Software enables the ability to have user management, door management, reporting and has complete time and attendance features.

MSRP: Lite Version included with purchase


Secure I/O

Used with Suprema Products, the Secure IO is an accessory device which is primarily used to prevent forced entry.  By locating the relay that unlocks the door inside the secured area, the Secure IO can prevent “hot wiring” of the lock.  Additional IO functionality includes four assignable inputs for use with alarm disconnects, alarm/tamper triggers, Request-to-Exits and more!  We strongly recommend this option for all high security areas.

MSRP: $149


Complete Door Hardware

One-Stop-Shop for complete door hardware solutions. Options ranging from Strikes to Mags depending on the solution for your door access.  Used in conjunction with Access Control products.

MSRP: ranges on solution


Reviews (0)

Be the first to review this product.
Additional Info

Additional Info

5.00 LBS
Access Methods:
Fingerprint, Card, Card + fingerprint
Card Access:
Mifare, EM, or HID
User Capacity:
Up to 5,000 Users
IP Enabled:
Log Capacity:
50,000 events
4MB flash + 8MB RAM
Network Interface:
Wiegand Output:
Configurable up to 64 bits
Internal Relay:
Deadbolt, EM lock, door strike, automatic door
Sound and Interface :
Multi-color LED and audible alerts
Operating Voltage:
50 x 160 x 37 mm (W x H x D)
Operating Temperature:
-4℉ - 122℉
Built-In POE:
Weather Proof:
IP 65:
